Manufacturing process of plate heat exchanger and gasket
The plate heat exchanger has the advantages of high heat exchange efficiency, small footprint, simple manufacture and simple maintenance, etc. It is suitable for district heating, domestic hot water, ice storage, swimming pool constant temperature in the field of HVAC; Cooling, process medium heating/cooling systems, etc., as well as electric power, steel, metallurgy, food, papermaking, shipbuilding, medicine, textiles, automobiles and other fields, as long as there is a need for heat exchange, there are market applications for plate heat exchangers. As part of plate heat exchanger gasket manufacturing, our team follows a precise and rigorous process at every stage;
1. Raw material supply

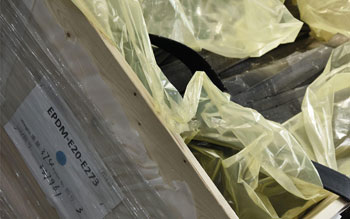

All our components and elastomers are produced by ourselves to ensure the highest quality products.
2. Tool manufacturing
Manufacture your own molds in-house at its manufacturing site, with flexibility and responsiveness.
3. Gasket manufacturing (molding)

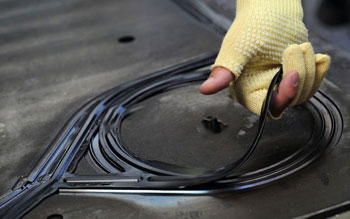

After the first extrusion step, the rubber is vulcanized in a press (17 in total, accommodating models from the smallest to the largest).
4. Quality control

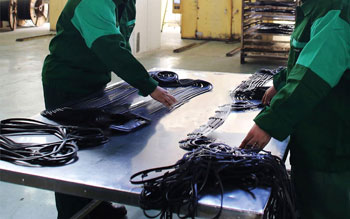

All seals are manually removed and visually inspected, then analyzed in the laboratory to check compliance with standards.
Online consultation
National Service Hotline: 400-6191-666
Introduction of plate heat exchanger and gasket
A liquid circulation channel is formed between the two plates, and the refrigerant and the heat medium are circulated respectively, and the heat is transferred in these two media.
Each plate is equipped with a sealing gasket, which acts as a seal and isolates the hot and cold fluids from flowing into adjacent channels.
Plate corrugations cause turbulence and support the plates against pressure differentials.
The two kinds of plates are the same plate, and the gasket is also the same gasket, but the gaskets are installed in different ways to achieve the effect of isolating the hot and cold fluids.
Scope of application: As long as there is a need for heat exchange, there is a market application of plate heat exchangers.
Plate heat exchanger brands: There are more than 500 kinds of gaskets including Alfa Laval, APV, GEA, Tranter, Hisaka and other well-known heat exchanger brands.
The rubber material of the gasket: It is determined according to the design of the heat exchanger. If it is impossible to confirm, we can also confirm the plan according to the characteristics of the medium and the working temperature.
Classification of gaskets: stick and non stick, unilateral flow and diagonal flow
The main models of plate heat exchangers and gaskets:

Our products can replace the following models:

Manufacturer/Maker Model/Model
Alfa Laval
Alfa Laval
M3, M6B, M6M, M10B, M10M, M15B, M15M, M20M, MX25B, MX25M, M30, MA30M, M10BW, M20MW, MK15BW, TL6B, TL10B, TL10P, TL15B, T20B, T20P, TL35B, TL35S, TS6M , TS20M, TS35P, T20BW, P16, P22, P26, P31, P36, A10B, A15B, A15B, A20B, A20, AK20, AK20-D, AM10, AM20B, AX30, CLIP6, CLIP8, CLIP10, EC350, EC500, V110S , M6M, M15B-LB, MX25B-LB
Amperex/Spike
APV/SPX
TI4, H17, N35, N50, A055, A085, Q030, Q030D, Q055, Q080, Q080D, J060, J092, J107, J185, M92, M107, SR2, SR14, SR14AD, B063, B110, B134, B205 , CZ450A, APV500, HX24, LR9, LR4, J060, CZ450, J185, B185
Specials
TRANTER
GX7, GX12, GL13, GC16, GX26, GXP26, GC26, GX42, GX42-D, GX51, GXP51, GC51, GCP51, GC54, GX60, GC60, GX64, GX85, GXP85, GX91, GX100, GX118, GX145 , GX205
Santanks
Sondex
S18/S17, S21, S22, S37, S41, S42, S43, S47, S62, S65, S81, S86, S100, S113, S121, S188, S4A, S7A, S8A, S9A, S14A, S19A, S20A , S21A, S41A, S43B, S43AD, S81A, S121A, SH101, SH102, SH154, SH154L, SH203, SH204, SH204L, S110B, S130
Vikab
Vicarb
V4, V8, V13, V28, V45, V60, V85-D, V100, V110, V20
Exxon
ACCESSEN
AU3, AU5, AU8, AU10L1, AU10L2, AU15L1, AU15L2, AU15M, AU20, AN5, AN10L2, AN15L1, AN15L2, AN20, AN25L1, AN30L1, AN30L2, AN35L1, AN40L2, AS6, AS20, AS25, AP20
Samowev
Thermowave
TL90PP, TL150PP, TL200PP, TL250PP, TL500PP, TL650PP, TL850PP, TL90SS, TL150SS, TL200SS, TL250SS, TL400SS, TL500SS, TL650SS, TL850SS, TL400-W
Kelvin
Kelvion
VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, VT80P, NT50M, NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, NT350M, NT500T, VT405L, VT4 , VT405S, VT805, AT805, N40, FA184-B, FA184-H
Smit
API
M19, M25, M26, M27, M29, M35, M37, M55, M66, M96, M45, M56, M49
Fengkai
Funke
FP05, FP10, FP19, FPS19, FP31, FS3O, FP40, FPS40, FP41, FP50, FP60, FP80, FP100
Industry application
01
Ocean
02
Pharmaceutical
03
Agricultural Products
04
HVAC
05
Oil
06
Energy
07
Chemical
08
Metallurgical Steel Industry
09
Car
10
Biofuels
Success Case
03-02
2022
Application cases of heat exchangers in the pharmaceutical field

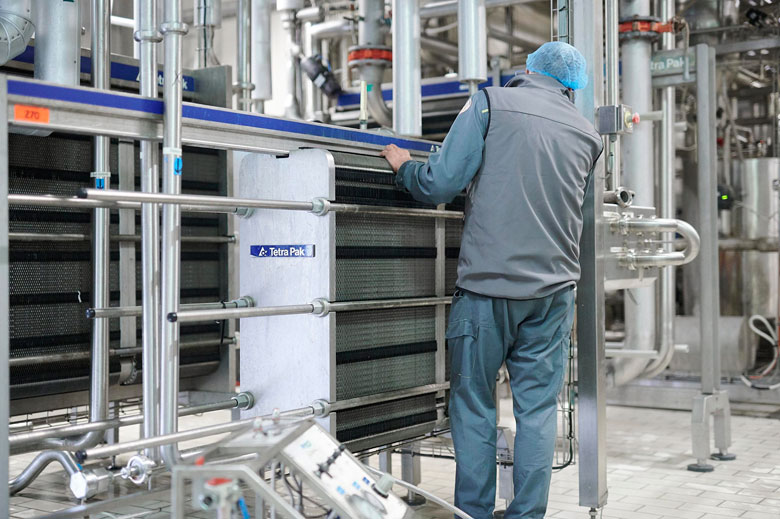

Our customer achieved complete satisfaction after the intervention of a technician in the disassembly, maintenance and reassembly of a Sondex S86 heat exchanger on a pharmaceutical site.
